Name: Automatic Control Gas Burner GX25 Natural Gas Burner LPG Gas Burner
Brand: Career Burner
SKU: GX25
Price: Price info here USD
Availability: InStock
Rating: 4.7 (15 reviews)

Brand: Career | Origin: China | Lead Time: 45 Days

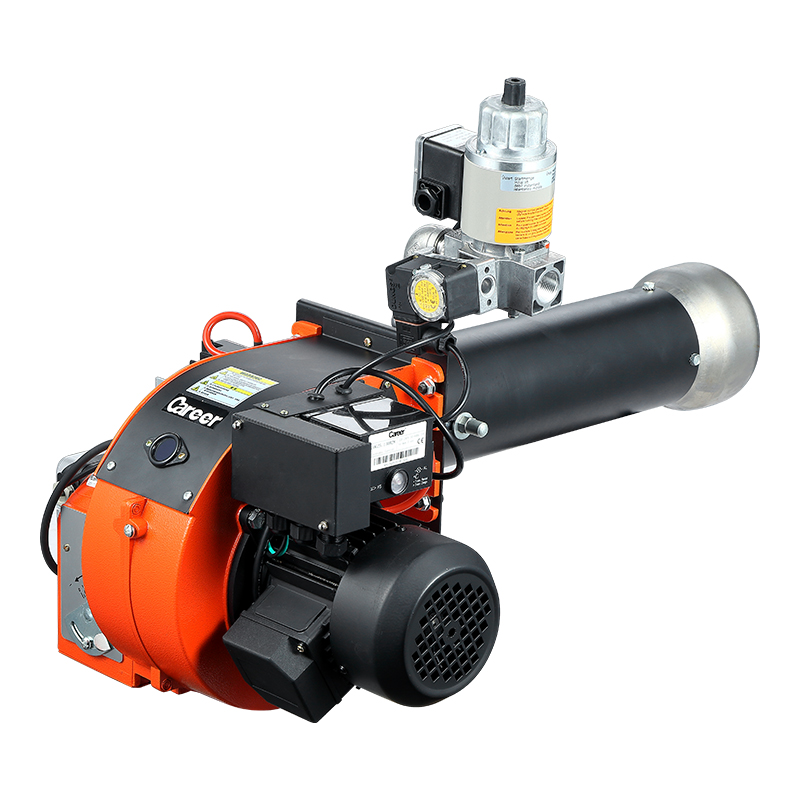

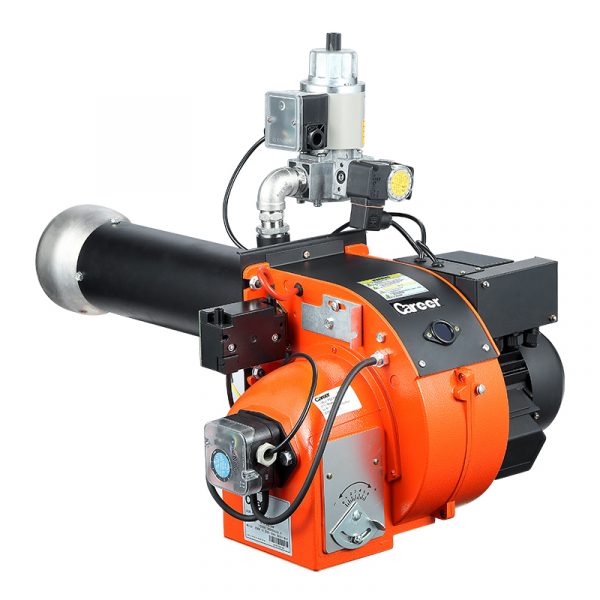

The Career GX25 is a compact, automatic industrial gas burner engineered for stable and controlled combustion using natural gas or LPG. Its monoblock design integrates forced-draft air supply, automatic ignition, flame detection, air and gas pressure monitoring, fuel-air regulation, and safety shutdown into one unit. With a stated output range of 290.7 kW (250,000 kcal/h), the GX25 high efficiency burner is suitable for boilers, hot water systems, industrial ovens, dryers, and food-processing equipment.

Product Features:

- Compact all-in-one design with forced-draft air supply
- Supports natural gas and LPG fuels
- Flexible operation with single- or multi-stage flame modulation
- Integrated automatic control with safety features including flame detection, air and gas pressure monitoring
- Accurate fuel-air ratio control
- Easy installation and maintenance

How Does the GX25 Automatic Gas Burner Work?

When the connected heating system sends a demand signal, the GX25 automatic gas burner begins a controlled start-up sequence. The burner first checks the required safety conditions and purges the combustion chamber with fresh air. It then opens the gas supply, activates ignition, and verifies the flame through the flame-detection system.During operation, the burner continuously monitors the flame, combustion air, and gas supply conditions. If flame failure or abnormal pressure is detected, the safety system closes the gas valves and stops the burner to prevent unburned gas from accumulating inside the equipment.

Which GX25 Configuration Do You Need, Natural Gas or LPG?

The GX25 high efficiency gas burner can be configured for either natural gas or LPG according to the fuel available at the installation site. Natural gas is commonly selected for facilities connected to a pipeline supply, while LPG is suitable for locations using storage tanks or a centralized LPG system. Because the two fuels have different supply pressures and combustion characteristics, the gas train, pressure settings, and fuel-air adjustment must be configured accordingly. Before ordering, please provide the required fuel type, gas composition, inlet pressure, heating load, and local power supply so that our engineers can prepare the correct burner configuration. The GX25 should not be switched directly between natural gas and LPG without the necessary adjustments and recommissioning by qualified personnel. Quote now!

Gas series - GX25
Natural gas Consumption	12.0-25.0	（m³/h）
Output Power	118.4-270	（kW）
Heat Power	102000-300000	（cal/h）
Motor Power	250	(W)
Power Supply	220/50	(V/Hz)
Control Mode	Single	-
Package Size	630525350	(mm)
Gross Weight	21	(kg)
Burner Gas Inlet	Rp1

* Note: Due to gas purity and concentration difference, the above parameters maybe different.

Frequently Asked Questions

Q1. What fuels can the GX25 automatic gas burner use?

The GX25 is designed for natural gas and LPG. Because these fuels require different pressures, valves, nozzles, and air-fuel settings, the required fuel must be confirmed before production. The burner should be recommissioned by qualified personnel before changing to another gas.

Q2. What are the output range and typical applications of the GX25?

The GX25 industrial natural gas burner provides a stated output range of 118.4–270 kW and is suitable for industrial boilers, hot water systems, ovens, dryers, food-processing equipment, and other process-heating applications requiring controlled heat

Q3. What control and safety functions does the GX25 include?

The standard GX25 specification lists single-stage operation. It integrates automatic ignition, flame detection, air-pressure monitoring, gas-pressure monitoring, fuel-air regulation, and safety shut-off functions to support automatic and reliable operation.

Q4. How can I confirm whether the GX25 is compatible with my equipment?

Please provide the equipment type, required heat output, combustion chamber dimensions, furnace pressure, operating temperature, gas type and pressure, power supply, and installation location. Our technical team will review these details and recommend the appropriate burner configuration.

Q5. What are the lead time and available delivery terms?

The standard lead time for the GX25 low emission burner is approximately 45 days after order confirmation. The actual schedule may vary according to the order quantity, selected fuel configuration, customization requirements, and destination. DDP and DAP delivery terms are available for international orders.

Q6. How is the GX25 packaged and shipped?

The listed package size is 630 × 525 × 350 mm, with a gross weight of approximately 21 kg per unit. Shipping can be arranged according to the order quantity, destination, delivery schedule, and agreed Incoterms. Please provide your delivery address and preferred delivery date for an accurate freight quotation.

Q7. What installation, warranty, and after-sales support are available?

Career Burner provides installation guidance, commissioning instructions, remote technical assistance, and replacement-parts support. The burner comes with a standard 18-month warranty from the date of arrival at destination port, subject to the purchase agreement. Installation and combustion tuning should be completed by qualified personnel in accordance with local gas and electrical safety requirements.
