Meeting increasingly stringent emissions regulations requires advanced technological approaches to nitrogen oxide control in combustion systems. Flue gas recirculation (FGR) has emerged as one of the most effective and widely adopted methods for reducing NOx formation without compromising combustion efficiency. This technique leverages the thermodynamic properties of combustion products to disrupt the chemical mechanisms responsible for nitrogen oxide formation, providing reliable emissions control across diverse operating conditions and fuel types.
Basic Principles and Implementation Methods
FGR operates by diverting a portion of flue gases from the exhaust stream back into the combustion air supply, effectively diluting the oxygen concentration in the primary combustion zone. In a modern low NOx gas burner, this recirculation typically occurs through a dedicated pipe system connecting the exhaust to the air intake, with dampers and flow controls maintaining precise recirculation rates. The system may utilize either forced draft fans or the Venturi effect created by high-velocity fuel jets to draw flue gases into the fresh air supply, with each approach offering distinct advantages depending on specific application requirements and existing system configuration.
Thermal Mechanism of NOx Reduction
The primary NOx reduction mechanism involves thermal suppression through heat absorption. Recirculated flue gases, consisting primarily of nitrogen, carbon dioxide, and water vapor, possess significantly higher heat capacity than fresh air. When introduced into the combustion zone, these gases act as a heat sink, absorbing thermal energy that would otherwise contribute to peak flame temperatures. Since thermal NOx formation increases exponentially with temperature, this modest reduction in peak temperature produces dramatic reductions in NOx emissions, particularly in the 1300-1500°C range where nitrogen oxidation accelerates rapidly.
Chemical Interactions and Additional Benefits
Beyond thermal effects, FGR influences combustion chemistry through several pathways. The reduced oxygen concentration in the primary zone slows reaction rates, preventing localized hot spots that drive NOx formation. Simultaneously, the introduced carbon dioxide and water vapor participate in endothermic reactions that further moderate temperatures. The water vapor specifically enhances the reverse reaction kinetics that convert formed NO back to molecular nitrogen. These combined effects not only reduce NOx but often improve overall combustion stability and fuel efficiency by promoting more complete fuel oxidation through extended residence times in the combustion zone.
System Design Considerations and Optimization
Effective FGR implementation requires careful balancing of recirculation rates against combustion performance. Excessive recirculation can lead to combustion instability, increased CO emissions, or even flame extinction. Modern systems employ sophisticated controls that adjust recirculation rates based on real-time measurements of oxygen, CO, and NOx levels in the exhaust stream. The optimal recirculation rate varies significantly depending on burner design, fuel composition, and desired emissions levels, typically ranging between 10-30% of total flue gas flow for most natural gas applications.
Conclusion

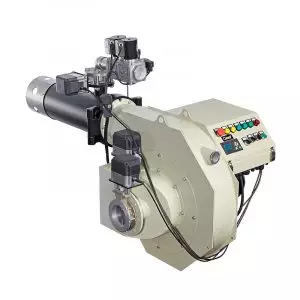

Flue gas recirculation represents a proven and effective technology for achieving stringent NOx reduction targets while maintaining combustion efficiency and operational reliability. Career Burner‘s FGR-equipped systems integrate this technology with our comprehensive combustion expertise, delivering emissions performance that meets the most demanding environmental standards. Our solutions leverage three decades of specialized experience to provide reliable low-NOx operation across diverse industrial applications, ensuring compliance without compromising performance.
